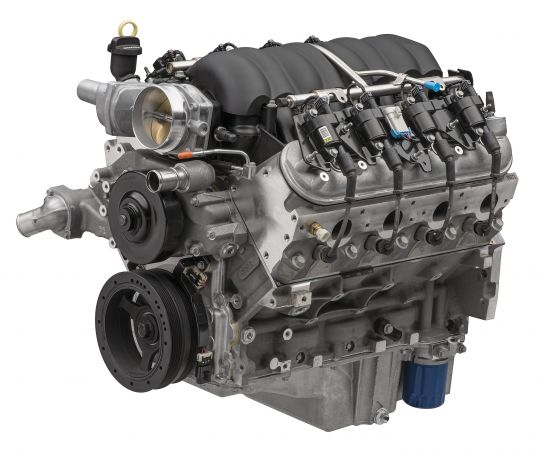

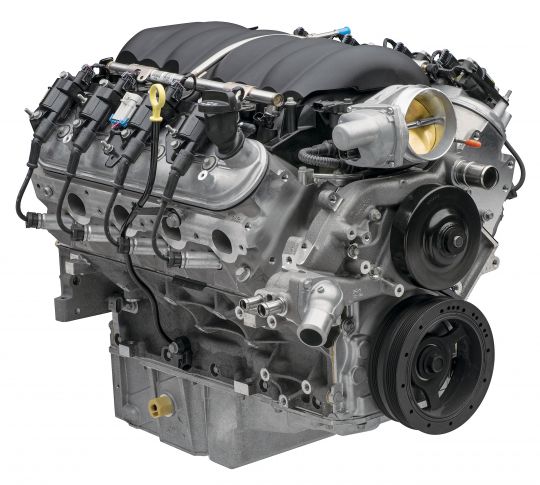

LS376/525 6.2L LS3 Engine 525 HP

LS376/525 6.2L LS3 Engine 525 HP

A Bigger Cam For Great Performance!

Chevrolet Performance’s LS376/525 is one of our most powerful naturally aspirated 6.2L crate engines. It’s based on the LS3, but adds our aggressive ASA camshaft to expand the performance range, particularly at high rpm, resulting in 525 horsepower and 486 lb.-ft. of torque.

The ASA camshaft is a hydraulic roller with .525-inch lift on both sides, along with 226 degrees duration on the intake side and 236 degrees on the exhaust side. Coupled with a tight 110-degree lobe separation angle, it helps the engine deliver excellent throttle response and breath exceptionally well at high rpm. And for durability, we complement the cam with higher-rate valve springs.

You’ll need tuning to make the most of the engine in a late-model GM vehicle. If you plan to use the LS376/525 in a vintage car, you’ll need the controller kit P/N 19354332, which includes the throttle pedal to match its electronically controlled throttle body. Use our Muscle Car Oil Pan Kit P/N 19212593 for installation in older vehicles.

TECH SPECS
Part Number: 19432418 / 19434642
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block (P/N 12623967): Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft (P/N 12597569): Nodular iron
Connecting Rods (P/N 12607475): Powdered metal
Pistons (P/N 19207287): Hypereutectic aluminum
Camshaft Type (P/N 88958770): Hydraulic roller
Valve Lift (in): 0.525 intake / 0.525 exhaust
Camshaft Duration (@0.050 in): 226° intake / 236° exhaust
Cylinder Heads (P/N 12629063): Aluminum L92-style port; as cast with 68cc chambers
Valve Size (in): 2.165 intake / 1.590 exhaust
Compression ratio: 10.7:1
Rocker Arms (P/N 12669995 int): Investment cast, roll trunnion
Rocker Arms (P/N 12669993 exh): Investment cast, roll trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58x
Balanced: Internal

INSTALLATION NOTES
• Assembly does not include any electronics
• Use LS376/525 Engine Controller Kit for engine operation, P/N 19354332.
• Includes Chevy SS wet sump oil pan
• Intended for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications
• Front-End Accessory Drive Kits are available in several configurations.

Chevrolet Performance Crate Engines include a 24-month or 50,000-mile/80,000-kilometer limited warranty.
